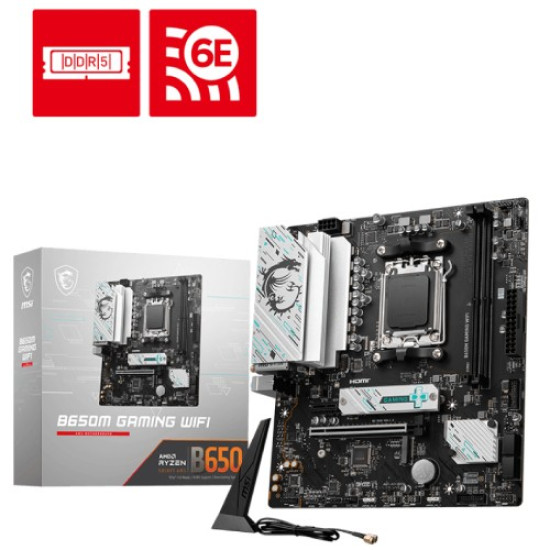

MSI B650M Gaming WiFi AM5 Micro-ATX Motherboard – Ryzen 7000 Ready

MSI B650M Gaming WiFi AM5 Micro-ATX Motherboard – Ryzen 7000 Ready
MSI B650M Gaming WiFi AM5 Micro-ATX Motherboard – Ryzen 7000 Ready
MSI B650M Gaming WiFi AM5 Micro-ATX Motherboard – Ryzen 7000 Ready
MSI B650M Gaming WiFi AM5 Micro-ATX Motherboard – Ryzen 7000 Ready
MSI B650M Gaming WiFi AM5 Micro-ATX Motherboard – Ryzen 7000 Ready
MSI B650M Gaming WiFi AM5 Micro-ATX Motherboard – Ryzen 7000 Ready
Basic Information
Supported CPU Supports AMD Ryzen 8000/ 7000 Series Desktop Processors Socket AM5
Form Factor mATX 226mmx243.84mm
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio
Chipset
Chipset Model AMD B650
Memory
Maximum Memory 128GB
Type DDR5
Bus Speed 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Total RAM Slot 2
Graphics
Graphics Model 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz*
Connector
M.2 Socket 2x M.2
PCI-E 1x PCI-E x16 slot Supports x16/x1 • Supports x16 (For Ryzen 7000 Series processors) • Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors) • Supports x4 (For Ryzen 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
Network & Connectivity
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
Wireless Communication module AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3
Ports & Slots
Display Port (s) 1x DisplayPort

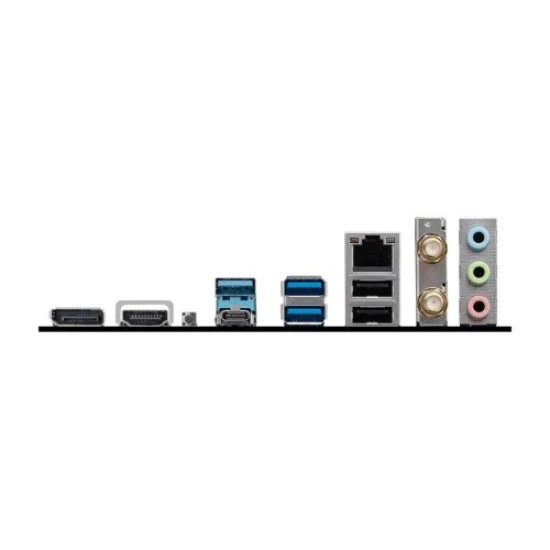

Internal I/O Ports INTERNAL IO 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports BACK PANEL PORTS DisplayPort HDMI USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button USB 3.2 Gen 1 5Gbps (Type-C) USB 3.2 Gen 1 5Gbps (Type-A) USB 2.0 TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
LAN Port (s) Realtek RTL8125BG 2.5Gbps LAN
Supported Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G • M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed
USB (s) 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front)
HDMI Port 1x HDMI
Warranty Information
Warranty 3 Years

Upgrade your gaming rig with the MSI B650M GAMING WIFI, a high-performance Micro-ATX motherboard designed for AMD's AM5 platform. Built to support the latest Ryzen 7000 series processors, this motherboard delivers exceptional power, connectivity, and stability for gamers and PC enthusiasts

Write a review

Please login or register to review
  • Model: B650M GAMING WIFI
  • Supported CPU: Ryzen 7000 / 8000 Series Processors for Socket AM5
  • Supported RAM: 2x DDR5, up to 7800+(OC) MHz
  • Graphics Output: 1x HDMI, 1x Display Port
  • Features: Supports Bluetooth 5.3, AMD Wi-Fi 6E
MSI B650M Gaming WiFi AM5 Micro-ATX Motherboard – Ryzen 7000 Ready
..

Key Features

  • Model: B650M GAMING WIFI
  • Supported CPU: Ryzen 7000 / 8000 Series Processors for Socket AM5
  • Supported RAM: 2x DDR5, up to 7800+(OC) MHz
  • Graphics Output: 1x HDMI, 1x Display Port
  • Features: Supports Bluetooth 5.3, AMD Wi-Fi 6E
Based on 0 reviews. - Write a review
18,000.00৳
  • Stock: In Stock
  • Model: B650M
MSI
Add to Cart
Buy Now
Add to Wish List Compare this Product
