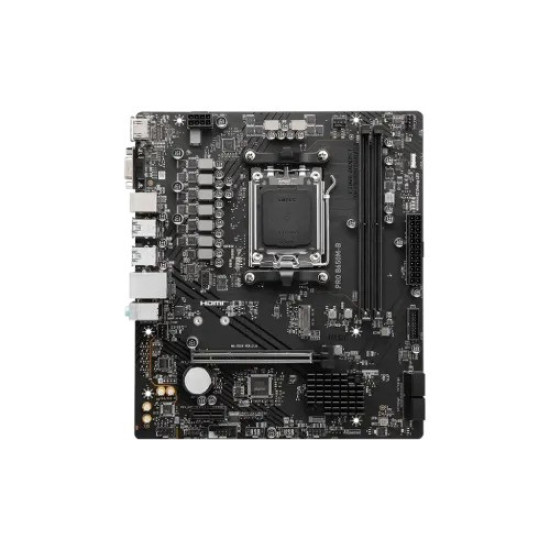

MSI B650M-A PRO High-Performance Micro ATX AMD Motherboard

Basic Information
Supported CPU	Supports AMD Ryzen 8000/ 7000 Series Desktop Processors Socket AM5
Form Factor	mATX 243.84mmx243.84mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Chipset
Chipset Model	AMD B650
Memory
Maximum Memory	96GB
Type	DDR5
Bus Speed	Supported Memory 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Total RAM Slot	2
Graphics
Graphics Model	1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Connector
PCI-E	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Ports & Slots
Audio	Audio Connectors
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
LAN Port (s)	Realtek RTL8125BG 2.5G LAN
Supported Storage	1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

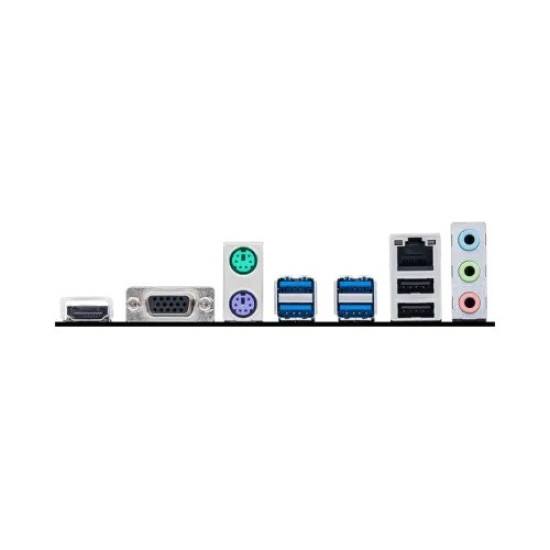

USB (s)	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
VGA (s)	1x VGA
HDMI Port	1x HDMI
Warranty Information
Warranty	3 Years

The MSI B650M-A PRO motherboard is designed to deliver reliable performance and advanced features for AMD Ryzen processors. With its Micro ATX form factor, it offers a compact yet powerful foundation for your PC build, making it ideal for gamers, content creators, and professionals alike.

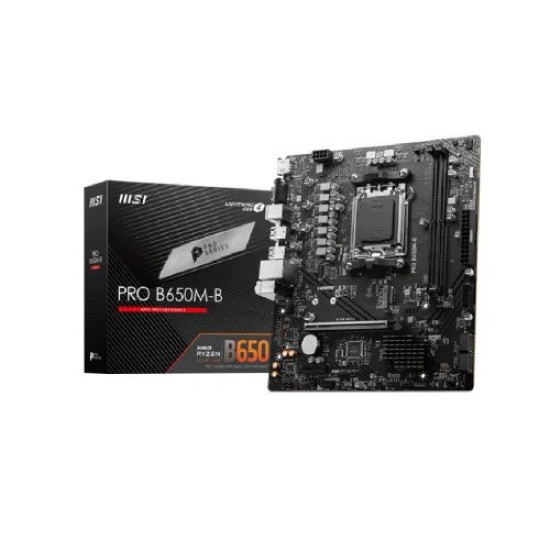

Model: PRO B650M-B
Supported CPU: Ryzen 8000 / 7000 Series Processors for Socket AM5
Supported RAM: 2x DDR5, up to 6800+(OC) MHz
Graphics Output: 1x HDMI, 1x VGA
Features: 2.5G LAN

MSI B650M-A PRO High-Performance Micro ATX AMD Motherboard

Key Features

Model: PRO B650M-B
Supported CPU: Ryzen 8000 / 7000 Series Processors for Socket AM5
Supported RAM: 2x DDR5, up to 6800+(OC) MHz
Graphics Output: 1x HDMI, 1x VGA
Features: 2.5G LAN
