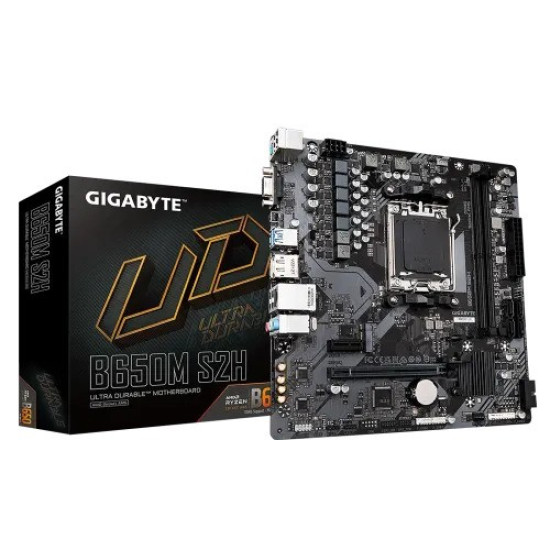

Name: GIGABYTE B650M S2H Gaming AM5 Micro-ATX Motherboard
Brand: Gigabyte
Price: 14500.00 BDT
Availability: InStock

GIGABYTE B650M S2H Gaming AM5 Micro-ATX Motherboard

Basic Information
Supported CPU	AMD Socket AM5, support for: AMD Ryzen™ 8000 & 7000 Series Processors
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 23.0cm x 22.5cm
Audio	3 x audio jacks
Chipset
Chipset Model	AMD B650
Memory
Maximum Memory	up to 96 GB (48 GB single DIMM capacity)
Type	DDR5
Bus Speed	Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Total RAM Slot	2 x DIMM
Graphics
Graphics Model	Integrated Graphics Processor: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
Others
Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Connector
PCI-E	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Ports & Slots
Display Port (s)	1 x DisplayPort D-Sub (s) 1 x D-Sub port
Internal I/O Ports	Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x Clear CMOS jumper Back Panel Connectors 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x RJ-45 port TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) Supported Storage CPU: - 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) Chipset: - 4 x SATA 6Gb/s connectors RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB (s)	CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
HDMI Port	1 x HDMI
Warranty Information
Warranty	3 Years

The GIGABYTE B650M S2H is a feature-packed motherboard designed for AMD's cutting-edge AM5 platform, making it an excellent choice for gamers and creators alike. Built with a durable Micro-ATX form factor, this motherboard combines performance, versatility, and affordability.

Model: B650M S2H
Supported CPU: Ryzen 8000 & 7000 Series Processors for Socket AM5
Supported Memory: 2 x DDR5 6400(OC) Max. 96GB
Graphics Output: 1 x DisplayPort, 1 x HDMI, 1 x D-Sub
Features: Realtek GbE LAN chip

GIGABYTE B650M S2H Gaming AM5 Micro-ATX Motherboard
