| Basic Information | |
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Chipset | |
| Chipset Model | AMD A520 |
| Memory | |
| Maximum Memory | 128 GB (32 GB single DIMM capacity) |
| Type | DDR4 |
| Bus Speed | AMD Ryzen 5000 series processors/ 3rd Generation AMD Ryzen: Support for 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Total RAM Slot | 4 x DIMM sockets |
| Graphics | |
| Graphics Memory | 16 GB |
| Graphics Model | Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz 1 x DisplayPort, supporting a maximum resolution of 5120 x 2880 @60 Hz 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz Support for up to 3 displays at the same time |
| Others | |
| Special Features | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Connectivity | |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Connector | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280 SATA and PCIe 3.0 x4/x2 SSD support) |
| PCI-E | CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2) |
| Network & Connectivity | |
| Wireless Communication module | Intel Wi-Fi 3168 WIFI 802.11a/b/g/n/ac, supporting 2.4/ 5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate |
| Physical Specification | |

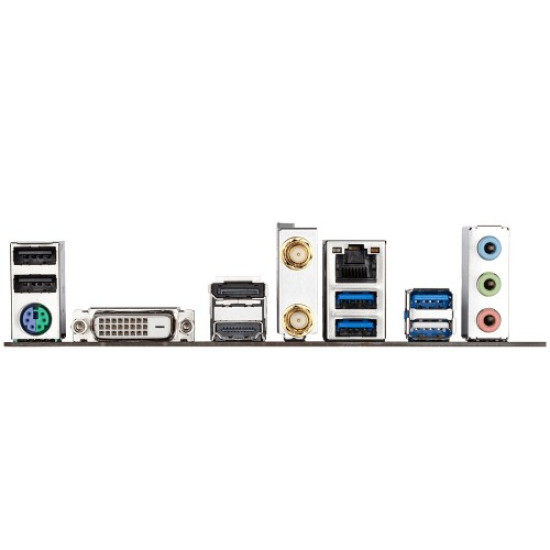

| I/O Port | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
| Ports & Slots | |
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/100 Mbit) |
| Warranty Information | |
| Warranty Details | 3 Years |
GIGABYTE A520M DS3H AC Ultra Durable AM4 Micro-ATX Motherboard with Wi-Fi
Unlock the full potential of your PC build with the GIGABYTE A520M DS3H AC Ultra Durable AM4 Micro-ATX motherboard. Designed to support AMD Ryzen 5000 and 3000 series processors, this motherboard offers superior performance and stability, backed by GIGABYTE's renowned Ultra Durable technology.
Equipped with built-in Wi-Fi, it ensures seamless wireless connectivity, eliminating the need for additional adapters. Featuring a reinforced PCIe slot for heavy-duty graphics cards and multiple storage options like M.2 and SATA, this motherboard offers impressive versatility for any setup.
The A520M DS3H AC boasts advanced cooling features, including multiple fan headers and smart fan control, ensuring your system remains cool even under heavy loads. Additionally, it supports DDR4 memory, providing fast data transfer speeds for gaming, multitasking, and creative applications.
With its compact Micro-ATX form factor, this motherboard is perfect for smaller builds without sacrificing power or expandability. Whether you’re building a high-performance workstation or a gaming rig, the GIGABYTE A520M DS3H AC delivers outstanding reliability and performance.
