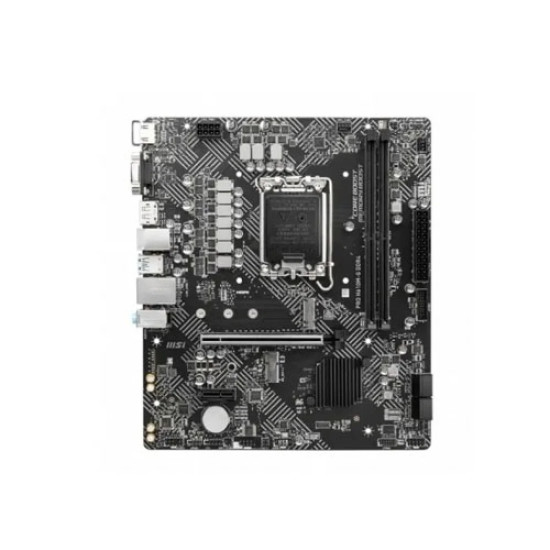

MSI PRO H610M-S DDR4 m-ATX Motherboard

MSI PRO H610M-S DDR4 m-ATX Motherboard
MSI PRO H610M-S DDR4 m-ATX Motherboard
MSI PRO H610M-S DDR4 m-ATX Motherboard
MSI PRO H610M-S DDR4 m-ATX Motherboard
MSI PRO H610M-S DDR4 m-ATX Motherboard
MSI PRO H610M-S DDR4 m-ATX Motherboard
Basic Information
Supported CPU Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Type DDR4
Form Factor mATX 200mmx236.16mm
Graphics Card 1x HDMI Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz
Audio Audio Connectors
External Features
PCI 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) M.2 Socket 1 x m.2
Chipset
Chipset Model Intel H610 Chipset
Memory
Maximum Memory 64GB
Slots 1
Supported Memory 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports Dual-Channel mode Supports non-ECC, un-buffered memory
Others
Special Features 4x EZ Debug LED
Ports & Slots
Internal I/O Ports 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports
LAN Port (s) Realtek RTL8111H Gigabit LAN
Supported Storage 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 2x SATA 6G
TPM (Trusted Platform Module) 1x TPM pin header(Support TPM 2.0)
USB (s) 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)
HDMI Port 1x HDMI 1.4 with HDR port
Warranty Information
Warranty 3 years

The MSI PRO H610M-S DDR4 m-ATX Motherboard is designed to provide a reliable foundation for everyday computing and productivity. Supporting 12th and 13th Gen Intel Core, Pentium Gold, and Celeron processors with the LGA1700 socket, this motherboard offers compatibility with DDR4 memory up to 3200 MHz. It features PCIe 4.0 slots, high-speed M.2 NVMe storage support, and USB 3.2 connectivity to deliver smooth and responsive performance. With Core Boost technology, reinforced power design, and optimized cooling solutions, it ensures stability and efficiency for home, office, and entry-level gaming builds.


Write a review

Please login or register to review
  • Model: PRO H610M-S
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 2x DDR4, Max 96GB
  • Graphics Output: 1x HDMI
  • Features: 1x M.2 slot, Realtek RTL8111H Gigabit LAN
MSI PRO H610M-S DDR4 m-ATX Motherboard
..

Key Features

  • Model: PRO H610M-S
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 2x DDR4, Max 96GB
  • Graphics Output: 1x HDMI
  • Features: 1x M.2 slot, Realtek RTL8111H Gigabit LAN
Based on 0 reviews. - Write a review
9,900.00৳
  • Stock: In Stock
  • Model: H610M-S
MSI
Add to Cart
Buy Now
Add to Wish List Compare this Product
Tags: motherboard
