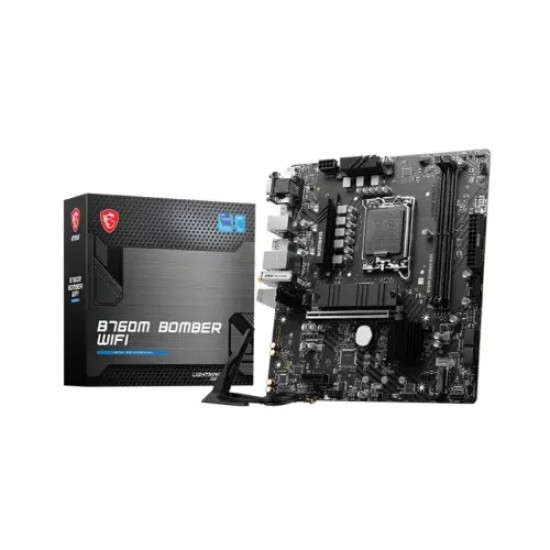

MSI B760M BOMBER WIFI mATX Motherboard

MSI B760M BOMBER WIFI mATX Motherboard
New
Basic Information
Supported CPU Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700
Type DDR5
Others Special Features 4x EZ Debug LED
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
External Features
PCI 5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Chipset
Chipset Model INTEL B760
Memory
Slots 2
Supported Memory Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory Maximum Memory 96GB Graphics Graphics 1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz 1x D-Sub Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz Connector & Ports HDMI 1x HDMI
Network & Connectivity
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Ports & Slots
Display Port (s) 1x DisplayPort D-Sub (s) 1x D-Sub
Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports
LAN Port (s) Realtek RTL8125B 2.5Gbps LAN Wireless Communication module Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA Supported Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
TPM (Trusted Platform Module) 1x TPM pin header(Support TPM 2.0)
USB (s) 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
Warranty Information
Warranty 3 years

The MSI PRO B760M BOMBER WIFI mATX Motherboard is a budget-friendly yet feature-rich platform designed for Intel 12th, 13th, and 14th Gen processors with the LGA 1700 socket. Built on the Intel B760 chipset, it supports high-speed DDR5 memory up to 6400MHz (OC), ensuring smooth multitasking and responsive system performance.

Equipped with built-in Wi-Fi 6E, Bluetooth support, and 2.5G LAN, this motherboard delivers fast and stable networking for gaming, streaming, and productivity. It also features PCIe 4.0 support, M.2 NVMe storage slots, and MSI Core Boost technology for reliable power delivery, making it a solid choice for modern budget PC builds.


Write a review

Please login or register to review

Model: B760M BOMBER WIFI

  • Supported CPU: 14th/ 13th/13th Gen Intel Processors (LGA1700)
  • Supported RAM: 2x DDR5, Max 192GB 6400+MHz (OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub
  • Features: 2x M.2 slot, 2.5G LAN with Wi-Fi 6E
MSI B760M BOMBER WIFI mATX Motherboard
..

Key Features

Model: B760M BOMBER WIFI

  • Supported CPU: 14th/ 13th/13th Gen Intel Processors (LGA1700)
  • Supported RAM: 2x DDR5, Max 192GB 6400+MHz (OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub
  • Features: 2x M.2 slot, 2.5G LAN with Wi-Fi 6E
