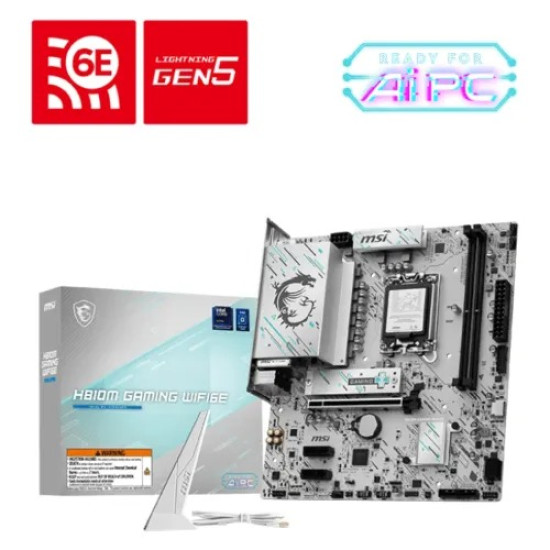

MSI H810M GAMING WIFI6E LGA 1851 mATX Motherboard

MSI H810M GAMING WIFI6E LGA 1851 mATX Motherboard
New
Basic Information
Supported CPU Supports Intel Core Ultra Processors (Series 2) LGA 1851
Type DDR5
Others Special Features 4x EZ Debug LED 1x EZ Memory Detection LED
Form Factor mATX 220mmx243.84mm
Audio 1x Front Audio (JAUD)
External Features
PCI 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Chipset
Chipset Model INTEL H810
Memory
Maximum Memory 128GB
Slots 2
Supported Memory Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Graphics
Graphics Type 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Ports & Slots
Internal I/O Ports 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
LAN Port (s) Realtek 8126 5Gbps LAN Wireless Communication module Wi-Fi 6E module The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 4x SATA 6G
TPM (Trusted Platform Module) 1x TPM pin header(Support TPM 2.0)
USB (s) 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
Warranty Information
Warranty 3 Year warranty

The MSI H810M GAMING WIFI6E LGA 1851 mATX Motherboard is a next-generation gaming motherboard built for Intel Core Ultra (Series 2) processors. Powered by the Intel H810 chipset, it supports DDR5 memory up to 6400MHz (OC), delivering fast performance, improved efficiency, and smooth multitasking for modern PC builds.

Designed for gamers and power users, it features a PCIe 5.0 x16 slot for next-gen graphics cards and PCIe 4.0 M.2 storage for ultra-fast data transfer. With integrated Wi-Fi 6E, Bluetooth 5.3, and high-speed LAN, it ensures stable and fast connectivity for gaming, streaming, and productivity.

Its compact micro-ATX design includes advanced cooling, Core Boost technology, and user-friendly DIY features, making it an excellent choice for building a reliable and future-ready gaming or workstation PC.


Write a review

Please login or register to review

Model: H810M GAMING WIFI6E

  • Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
  • Supported RAM: 2x DDR5 UDIMM, Up to 6400+(OC) MT/s, Max 128GB
  • Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4
  • Features: 1x M.2, Realtek 8126 5Gbps LAN, Wi-Fi 6E, Bluetooth 5.3
MSI H810M GAMING WIFI6E LGA 1851 mATX Motherboard
..

Key Features

Model: H810M GAMING WIFI6E

  • Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
  • Supported RAM: 2x DDR5 UDIMM, Up to 6400+(OC) MT/s, Max 128GB
  • Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4
  • Features: 1x M.2, Realtek 8126 5Gbps LAN, Wi-Fi 6E, Bluetooth 5.3
Based on 0 reviews. - Write a review
19,900.00৳
  • Stock: In Stock
  • Model: H810M GAMING WIFI6E
MSI
Add to Cart
Buy Now
Add to Wish List Compare this Product
Tags: mother board
