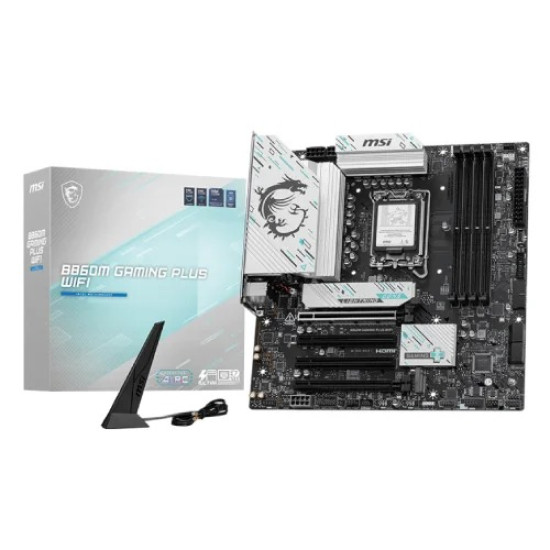

MSI B860M GAMING PLUS WIFI LGA 1851 Micro ATX Motherboard

MSI B860M GAMING PLUS WIFI LGA 1851 Micro ATX Motherboard
New
Basic Information
Supported CPU Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
Type DDR5
Form Factor mATX Form Factor 243.84mmx243.84mm
Audio 1x Front Audio (JAUD)
External Features
PCI 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Chipset
Chipset Model INTEL B860
Memory
Maximum Memory Maximum Memory Capacity 256GB
Slots 4 x DIMM
Supported Memory Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Graphics
Graphics Type 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Connectivity
HDMI 1x HDMI 2.1 Display Port (s) 1x DisplayPort 1.4a
Connector
M.2 Socket 3x M.2
Network & Connectivity
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Ports & Slots
Internal I/O Ports 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
LAN Port (s) Intel Killer E5000 5Gbps LAN Wireless Communication module Intel Killer BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
Supported Storage 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G
USB (s) 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front)
Warranty Information
Warranty Information Manufacturing Warranty 3 Year warranty

The MSI B860M Gaming Plus WiFi Micro ATX motherboard is built for next-gen performance with LGA 1851 socket support. Designed for gamers and creators, it offers fast connectivity, integrated WiFi, durable power design, and excellent thermal performance in a compact form factor.


Write a review

Please login or register to review

Model: B860M GAMING PLUS WIFI

  • Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
  • Supported RAM: 4x DDR5, Max 256GB, 8800+ MT/s (OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort, 1x Type-C (Thunderbolt 4)
  • Features: 3x M.2, Intel Killer E5000 5Gbps LAN, Wi-Fi 7, Bluetooth 5.4
MSI B860M GAMING PLUS WIFI LGA 1851 Micro ATX Motherboard
..

Key Features

Model: B860M GAMING PLUS WIFI

  • Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
  • Supported RAM: 4x DDR5, Max 256GB, 8800+ MT/s (OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort, 1x Type-C (Thunderbolt 4)
  • Features: 3x M.2, Intel Killer E5000 5Gbps LAN, Wi-Fi 7, Bluetooth 5.4
Based on 0 reviews. - Write a review
25,900.00৳
  • Stock: In Stock
  • Model: B860M GAMING PLUS WIFI
MSI
Add to Cart
Buy Now
Add to Wish List Compare this Product
Tags: mother board
