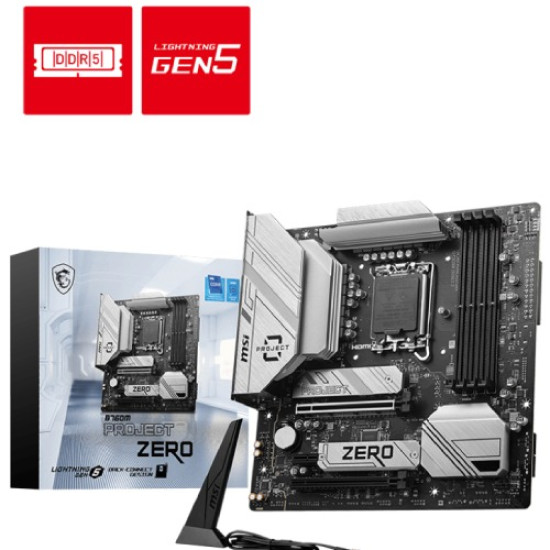

MSI B760M PROJECT ZERO m-ATX Motherboard

MSI B760M PROJECT ZERO m-ATX Motherboard
New
Basic Information
Supported CPU Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Type DDR5
Others Special Features 4x EZ Debug LED
Form Factor mATX 243.84mmx243.84mm
Audio Realtek ALC897 Codec 7.1-Channel High Performance Audio Supports S/PDIF output
External Features
PCI 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Chipset
Chipset Model INTEL B760
Memory
Maximum Memory 192GB
Slots 4x DIMM
Supported Memory Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile
Graphics
Graphics Type Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 4K 60Hz*
Connectivity
HDMI 1x HDMI 1.4 Display Port (s) 1x DisplayPort
Connector
M.2 Socket 1x M.2
Ports & Slots
Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports BACK PANEL PORTS: USB 2.0 DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI™ 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
LAN Port (s) Realtek 2.5Gbps LAN Wireless Communication module Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA Supported Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Internal I/O Ports
TPM (Trusted Platform Module) 1x TPM pin header(Support TPM 2.0)
USB (s) 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
Warranty Information
Warranty 3 years

The MSI B760M PROJECT ZERO m-ATX Motherboard is designed for next-generation PC builds with a unique back-connect layout that hides cables behind the motherboard for a clean and minimalist setup. It supports Intel 12th, 13th, and 14th Gen processors on the LGA 1700 socket and delivers powerful performance with DDR5 memory support up to high overclock speeds. Equipped with PCIe 5.0, Lightning Gen 4 M.2 storage, Wi-Fi 6E, and 2.5G LAN, it ensures ultra-fast connectivity and gaming performance. The advanced 12+1+1 power phase design and premium thermal solutions provide stability and efficient cooling even under heavy workloads.


Write a review

Please login or register to review

Model: B760M PROJECT ZERO

  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR5, Max 192GB
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: Realtek 2.5Gbps LAN, Intel Wi-Fi 6E
MSI B760M PROJECT ZERO m-ATX Motherboard
..

Key Features

Model: B760M PROJECT ZERO

  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR5, Max 192GB
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: Realtek 2.5Gbps LAN, Intel Wi-Fi 6E
Based on 0 reviews. - Write a review
24,400.00৳
  • Stock: In Stock
  • Model: B760M PROJECT ZERO
MSI
Add to Cart
Buy Now
Add to Wish List Compare this Product
Tags: mother board
