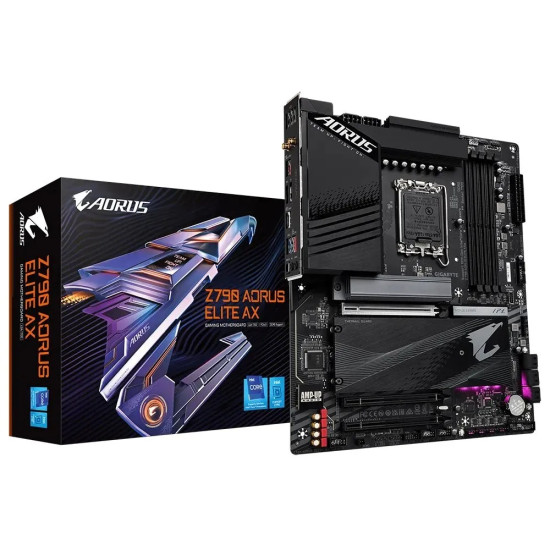

GIGABYTE Z790 AORUS ELITE AX ATX Motherboard

GIGABYTE Z790 AORUS ELITE AX ATX Motherboard
New
Basic Information
Supported CPU LGA1700 socket: Support for the 14th Gen, 13th and 12th Generation Intel Core, Pentium Gold and Celeron
Type DDR5
Others Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Processor L3 cache varies with CPU
Audio 2 x audio jacks
External Features
PCI CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) Support for AMD CrossFire technology (PCIEX16 and PCIEX4)
Chipset
Chipset Model Intel Z790 Express Chipset
Memory
Maximum Memory 128GB (32 GB single DIMM capacity)
Slots 4 x DIMM sockets
Supported Memory Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Graphics
Graphics Type Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 * Support for DisplayPort 1.2 version and HDCP 2.3
Others
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software
Connectivity
HDMI 1 x HDMI
Ports & Slots
Display Port (s) 1 x DisplayPort
Internal I/O Ports 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper
Supported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
TPM (Trusted Platform Module) (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
USB (s) Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Warranty Information
Warranty 3 years

The GIGABYTE Z790 AORUS ELITE AX ATX Motherboard is a high-performance platform built for Intel’s latest 12th, 13th, and 14th Gen processors. Featuring the Intel Z790 chipset, it supports DDR5 memory up to 7600MHz (OC), ensuring fast and efficient multitasking. With PCIe 5.0 support, multiple M.2 slots, and advanced thermal design, it delivers exceptional speed and stability for gaming and productivity. Integrated Wi-Fi 6E and 2.5Gb Ethernet provide ultra-fast connectivity, while robust VRM power design ensures reliable performance under heavy workloads.


Write a review

Please login or register to review

Model: Z790 AORUS ELITE AX

  • Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
  • Supported RAM: 4 x DDR5 DIMMs, up to 7600(O.C.)
  • Graphics Output: 1 x HDMI, 1 x DisplayPort
  • Features: 2.5GbE LAN & Wi-Fi 6E 802.11ax
GIGABYTE Z790 AORUS ELITE AX ATX Motherboard
..

Key Features

Model: Z790 AORUS ELITE AX

  • Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
  • Supported RAM: 4 x DDR5 DIMMs, up to 7600(O.C.)
  • Graphics Output: 1 x HDMI, 1 x DisplayPort
  • Features: 2.5GbE LAN & Wi-Fi 6E 802.11ax
