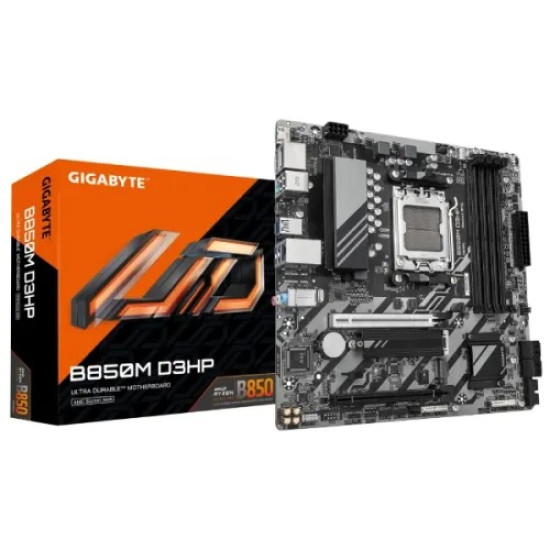

GIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard

GIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard
New
Basic Information
Supported CPU AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors AMD Ryzen 8000 Series Processors AMD Ryzen 7000 Series Processors
Type DDR5
Others Special Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio 3 x audio jacks
External Features
PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Chipset
Chipset Model AMD B650
Memory
Maximum Memory Up to 256 GB (64 GB single DIMM capacity) of system memory
Slots 4 DIMM
Supported Memory Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC)/6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Graphics
Graphics Type Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
Others
Bundled Software Norton® Internet Security (OEM version) LAN bandwidth management software
Connectivity
HDMI 1x HDMI
Connector
M.2 Socket 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
Ports & Slots
Display Port (s) 2 x DisplayPorts
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x PS/2 keyboard/mouse port 1 x Q-Flash Plus button 1 x USB Type-C® port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB (s) CPU: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support - 1 x USB 3.2 Gen 1 port on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
Warranty Information
Warranty 3 Years

The GIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard is built to deliver reliable performance for modern PC builds. Supporting the latest AMD AM5 processors and high-speed DDR5 memory, it ensures faster data processing and improved system efficiency. Its Micro ATX form factor makes it ideal for compact builds without sacrificing essential features. With advanced connectivity options, durable components, and efficient thermal design, this motherboard is perfect for both everyday computing and performance-focused setups.



Write a review

Please login or register to review

Model: B850M D3HP

  • Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, up to 256GB, 8200(OC)
  • Graphics Output: 2x Display Port, 1 x HDMI
  • Features: 2x M.2 Slot, Realtek GbE LAN chip
GIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard
..

Key Features

Model: B850M D3HP

  • Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, up to 256GB, 8200(OC)
  • Graphics Output: 2x Display Port, 1 x HDMI
  • Features: 2x M.2 Slot, Realtek GbE LAN chip
Based on 0 reviews. - Write a review
18,500.00৳
  • Stock: In Stock
  • Model: B850M D3HP
