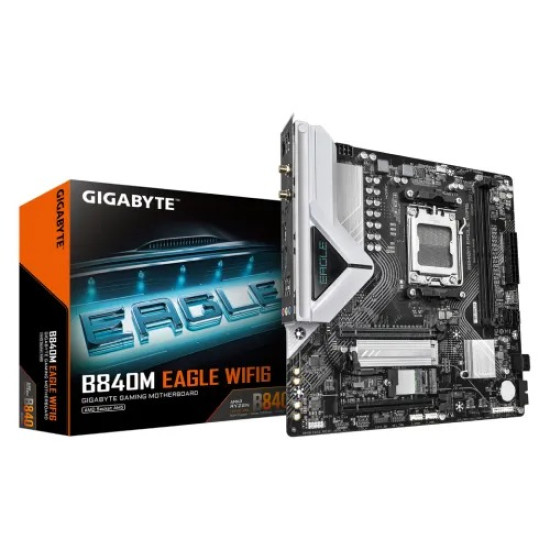

GIGABYTE B840M EAGLE WIFI6 AMD AM5 Motherboard

GIGABYTE B840M EAGLE WIFI6 AMD AM5 Motherboard
New
Basic Information
Supported CPU AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors
Type DDR5
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio 3 x audio jacks 1 x front panel audio header
External Features
PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) M.2 Socket 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 3.0 x2 SSDs
Chipset
Chipset Model AMD B840
Memory
Maximum Memory up to 128 GB (64 GB single DIMM capacity) of system memory
Slots 2 x DIMM sockets
Supported Memory Support for DDR5 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support forAMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Graphics
Graphics Type Graphics Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz Support for DisplayPort 1.4 version and HDR. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)
Others
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software
Connectivity
HDMI 1x HDMI
Ports & Slots
Display Port (s) 2 x DisplayPorts
Internal I/O Ports Internal I/O Connectors 1x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 4 x USB 2.0/1.1 ports 1 x DisplayPort (Note) 1 x HDMI port (Note) 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Realtek Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
TPM (Trusted Platform Module) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
USB (s) CPU: 2 x USB 3.2 Gen 1 ports on the back panel CPU+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset: 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header 2 x USB 3.2 Gen 1 ports available through the internal USB headers 4 x USB 2.0/1.1 ports available through the internal USB headers
Warranty Information
Warranty 3 Years

The GIGABYTE B840M EAGLE WIFI6 is a modern Micro-ATX motherboard built for AMD’s latest AM5 platform, supporting Ryzen 7000, 8000, and 9000 series processors. Powered by the AMD B840 chipset, it features DDR5 memory support up to 7600MHz (OC), ensuring fast and efficient system performance. With dual M.2 slots, PCIe 4.0 support, and a durable 5+2+2 phase VRM design, it delivers stable performance for gaming and daily workloads. Integrated Wi-Fi 6, Bluetooth 5.3, and 2.5GbE LAN provide fast and reliable connectivity, while EZ-Latch design and advanced thermal solutions make installation and cooling easier. This board is ideal for budget-conscious users looking to build a future-ready AM5 system.


Write a review

Please login or register to review

Model: B840M EAGLE WIFI6

  • Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 2x DDR5, Up to 7600(O.C.), Max 128GB
  • Graphics Output: 1 x DisplayPort, 1 x HDMI
  • Features: 2x M.2, Realtek 2.5GbE LAN, Realtek Wi-Fi 6 RTL8851BE
GIGABYTE B840M EAGLE WIFI6 AMD AM5 Motherboard
..

Key Features

Model: B840M EAGLE WIFI6

  • Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 2x DDR5, Up to 7600(O.C.), Max 128GB
  • Graphics Output: 1 x DisplayPort, 1 x HDMI
  • Features: 2x M.2, Realtek 2.5GbE LAN, Realtek Wi-Fi 6 RTL8851BE
Based on 0 reviews. - Write a review
17,500.00৳
  • Stock: In Stock
  • Model: B840M EAGLE WIFI6
