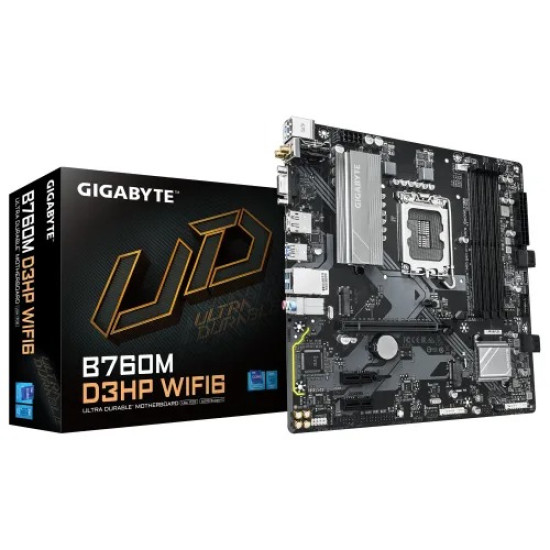

GIGABYTE B760M D3HP WIFI6 DDR5 mATX Motherboard

GIGABYTE B760M D3HP WIFI6 DDR5 mATX Motherboard
New
Basic Information
Supported CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron
Type DDR5
Others Special Features Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio 3 x audio jacks
Processor
Processor L3 cache varies with CPU
Memory
Maximum Memory Supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Slots 4
Supported Memory Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Graphics
Graphics Type Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3. Support for native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3
Others
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software
Connectivity
HDMI 1 x HDMI port Display Port (s) 1 x DisplayPort D-Sub (s) 1 x D-Sub port
Ports & Slots
Internal I/O Ports Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) Wireless Communication module Realtek Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless standard
Supported Storage CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB (s) Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Warranty Information
Warranty 3 years Warranty

The GIGABYTE B760M D3HP WIFI6 DDR5 Micro ATX Motherboard is a powerful and feature-rich platform designed for Intel LGA1700 processors, supporting 12th, 13th, and 14th Gen Intel Core CPUs. Built on the Intel B760 chipset, it delivers stable performance with an efficient power design, making it ideal for gaming, productivity, and everyday computing.

This motherboard supports high-speed DDR5 memory up to 128GB, ensuring faster data transfer and improved multitasking performance. It features PCIe 4.0 support with a full-length x16 slot for modern graphics cards and dual M.2 slots for ultra-fast NVMe SSD storage. Integrated WiFi 6 and Bluetooth provide fast and reliable wireless connectivity, while Smart Fan 6 technology ensures optimal cooling performance. With multiple display outputs, USB connectivity, and durable components, it’s a solid choice for compact yet powerful PC builds.

M

Write a review

Please login or register to review
  • Model: B760M D3HP WIFI6
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR5, Max 256GB 5600
  • Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub port
  • Features: Realtek GbE LAN, Wi-Fi 6, BLUETOOTH 5.3
GIGABYTE B760M D3HP WIFI6 DDR5 mATX Motherboard
..
  • Model: B760M D3HP WIFI6
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR5, Max 256GB 5600
  • Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub port
  • Features: Realtek GbE LAN, Wi-Fi 6, BLUETOOTH 5.3
Based on 0 reviews. - Write a review
18,800.00৳
