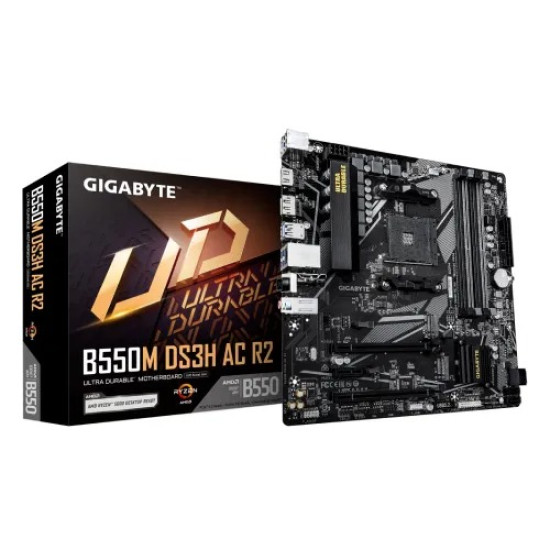

GIGABYTE B550M DS3H AC R2 mATX AMD Motherboard

GIGABYTE B550M DS3H AC R2 mATX AMD Motherboard
New
Basic Information
Supported CPU AMD Socket AM4, support for: AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 3000 Series Processors Chipset AMD B550
Type Dual Channel DDR4 Memory Technology
Others - @BIOS - EasyTune - RGB Fusion - Smart Backup - System Information Viewer Support for Q-Flash Plus Support for Q-Flash
BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 2 x antenna connectors 3 x audio jacks
External Features
PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 5000/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4 - 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1 M.2 Socket 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs
Memory
Maximum Memory 128 GB
Slots 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory
Supported Memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Graphics
Max Shared Memory 16 GB
Graphics Type Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Others
Bundled Software Support for Windows 10 64-bit
Connectivity
HDMI - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Ports & Slots
Display Port (s) - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) Wireless Communication module Realtek® Wi-Fi RTL8821CE - WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 5.0 - Support for 11ac wireless standard
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:  AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs  AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
TPM (Trusted Platform Module) 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
USB (s) CPU: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Warranty Information
Warranty 03 years Warranty

The GIGABYTE B550M DS3H AC R2 is a versatile Micro ATX motherboard designed for AMD AM4 Ryzen processors, including Ryzen 3000, 4000, and 5000 series. Built on the B550 chipset, it features PCIe 4.0 support for faster graphics and storage performance, along with dual M.2 slots for high-speed NVMe SSDs. This model stands out with integrated Wi-Fi 5 and Bluetooth connectivity, ensuring reliable wireless networking alongside Gigabit LAN. Its 5+3 phase digital VRM design provides stable power delivery, while Smart Fan 6 and advanced thermal solutions maintain efficient cooling. With HDMI, DisplayPort, RGB Fusion 2.0, and durable build quality, it’s an excellent choice for budget gaming and productivity builds.



Write a review

Please login or register to review

Model: B550M DS3H AC R2

  • AMD Ryzen 5000/4000/3000G Series Processors
  • Memory: 4 x DDR4 DIMM up to 128GB
  • Ports: 1 x DipslayPort, 1 x HDMI
  • Realtek Gigabit LAN, Realtek Wi-Fi, Bluetooth 5.0
GIGABYTE B550M DS3H AC R2 mATX AMD Motherboard
..

Key Features

Model: B550M DS3H AC R2

  • AMD Ryzen 5000/4000/3000G Series Processors
  • Memory: 4 x DDR4 DIMM up to 128GB
  • Ports: 1 x DipslayPort, 1 x HDMI
  • Realtek Gigabit LAN, Realtek Wi-Fi, Bluetooth 5.0
Based on 0 reviews. - Write a review
12,900.00৳
  • Stock: In Stock
  • Model: B550M DS3H AC R2
Gigabyte Gigabyte
Add to Cart
Buy Now
Add to Wish List Compare this Product
Tags: mother board
