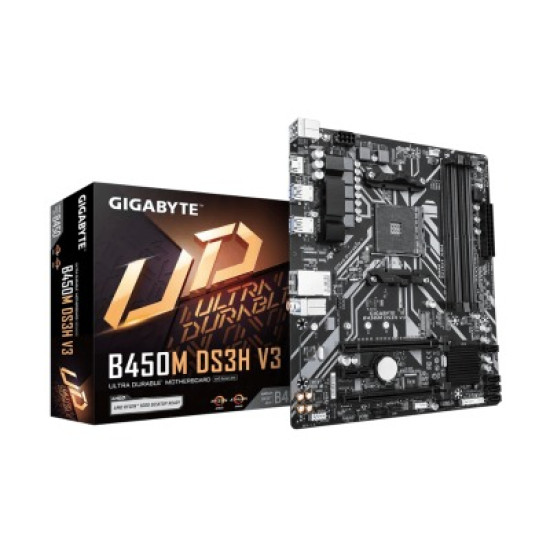

Gigabyte B450M DS3H V3 AMD AM4 Micro ATX Motherboard

Gigabyte B450M DS3H V3 AMD AM4 Micro ATX Motherboard
New
Basic Information
Supported CPU AMD Socket AM4, support for: AMD Ryzen 5000 Series/ AMD Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series/ 3rd Generation AMD Ryzen/ 2nd Generation AMD Ryzen/ 1st Generation AMD Ryzen/ 2nd Generation Ryzen with Radeon Vega Graphics/ 1st Generation Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Type DDR4
Others Special Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 21.5cm
Audio 3 x audio jacks
External Features
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.) M.2 Socket 1 x M.2 connector
Chipset
Chipset Model AMD B450
Memory
Memory Max. 16 GB
Slots 4 x DIMM
Supported Memory Dual channel memory architecture Support for DDR4 2933/2667/2400/2133 MT/s memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Maximum Memory 128 GB (32 GB single DIMM capacity) of system memory
Graphics
Graphics Type 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Connectivity
HDMI 1 x HDMI port
Ports & Slots
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x CPU cooler LED strip/RGB LED strip header 1 x RGB LED strip header 2 x addressable LED strip headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
LAN Port (s) Realtek GbE LAN chip (10/100/1000 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD Athlon-series/ 7th Gen. A-series or Athlon X4 APU. 4 x SATA 6Gb/s connectors RAID Support for RAID 0, RAID 1, and RAID 10
USB (s) Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel
Warranty Information
Warranty Information Manufacturing Warranty 3 years

The Gigabyte B450M DS3H V3 is a reliable and budget-friendly Micro ATX motherboard designed for AMD AM4 processors. Powered by the AMD B450 chipset, it supports a wide range of Ryzen CPUs, including Ryzen 5000 series (with BIOS update), making it a versatile choice for gaming and everyday computing. It features dual-channel DDR4 memory support, PCIe 3.0 for graphics, and an ultra-fast M.2 slot for NVMe SSDs, ensuring smooth performance and fast data access. With integrated HDMI support for 4K display, RGB Fusion 2.0, and Smart Fan cooling technology, this motherboard delivers stability, efficiency, and essential features for modern PC builds.



Write a review

Please login or register to review

Model: B450M DS3H V3

  • Supported CPU: Ryzen 5000/ 5000 G/ 4000 G/3rd/ 2nd/1st Gen Processors for Socket AM4
  • Supported RAM: 4 x DDR4, up to 128GB, 2933MT/s
  • Graphics Output: 1 x HDMI port, Onboard 16GB
  • Features: 1 x M.2 Slot, Realtek GbE LAN
Gigabyte B450M DS3H V3 AMD AM4 Micro ATX Motherboard
..

Key Features

Model: B450M DS3H V3

  • Supported CPU: Ryzen 5000/ 5000 G/ 4000 G/3rd/ 2nd/1st Gen Processors for Socket AM4
  • Supported RAM: 4 x DDR4, up to 128GB, 2933MT/s
  • Graphics Output: 1 x HDMI port, Onboard 16GB
  • Features: 1 x M.2 Slot, Realtek GbE LAN
Based on 0 reviews. - Write a review
10,000.00৳
  • Stock: In Stock
  • Model: B450M DS3H V3
Gigabyte Gigabyte
Add to Cart
Buy Now
Add to Wish List Compare this Product
Tags: mother board
