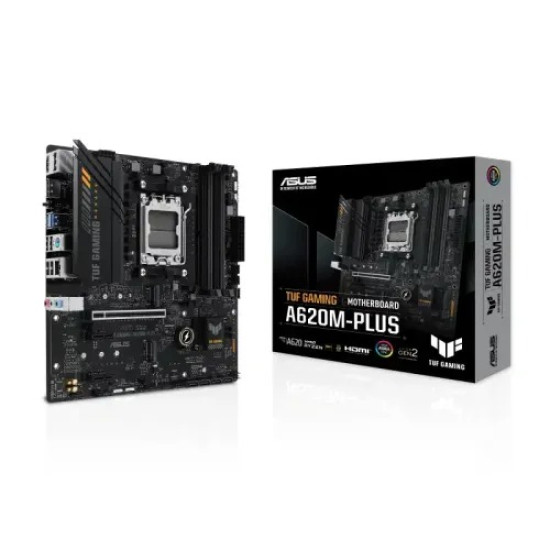

ASUS TUF GAMING A620M-PLUS AMD AM5 Micro-ATX Motherboard mmc

ASUS TUF GAMING A620M-PLUS AMD AM5 Micro-ATX Motherboard mmc
New
Basic Information
Supported CPU AMD Socket AM5 for AMD Ryzen 8000 / 7000 Series Desktop Processors
Type DDR5
Others ASUS TUF PROTECTION - DIGI+ VRM - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED Aura Sync - Aura RGB header - Addressable Gen 2 headers
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor Micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Audio 3 x Audio jacks
External Features
PCI AMD Ryzen 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot AMD A620 Chipset 2 x PCIe 3.0 x1 slots
Chipset
Chipset Model AMD A620 Chipset
Memory
Maximum Memory 128GB
Slots 4 x DIMM
Supported Memory DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II
Graphics
Graphics Type 2 x DisplayPort** 1 x HDMI port*** ** Support max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.
Camera & Audio
Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Others
Bundled Software ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z Norton 360 for Gamers (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Connectivity
HDMI 1 x HDMI
Ports & Slots
Display Port (s) 2 x DisplayPort
Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet TUF LANGuard
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD A620 Chipset 4 x SATA 6Gb/s ports RAID AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
USB (s) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header
Warranty Information
Warranty 3 Years

The ASUS TUF GAMING A620M-PLUS AMD AM5 Micro-ATX Motherboard is a reliable and durable choice for building a powerful AMD Ryzen system. Designed with military-grade components and advanced cooling, it ensures stable performance for gaming and multitasking. Supporting DDR5 memory, PCIe 4.0, and dual M.2 slots, this motherboard delivers fast data transfer and smooth system operation. Its compact Micro-ATX form factor, combined with 2.5Gb Ethernet and multiple connectivity options, makes it perfect for modern gaming PCs and productivity setups.


Write a review

Please login or register to review

Model: TUF GAMING A620M-PLUS

  • Supported CPU: Ryzen 8000 / 7000 Series Processors for Socket AM5
  • Supported Memory: 4 x DIMM slots, Max. 128GB, DDR5 6400+(OC)
  • Graphics Output: 2 x DisplayPort, 1 x HDMI port
  • Features: 1 x Realtek 2.5Gb Ethernet
ASUS TUF GAMING A620M-PLUS AMD AM5 Micro-ATX Motherboard mmc
..

Key Features

Model: TUF GAMING A620M-PLUS

  • Supported CPU: Ryzen 8000 / 7000 Series Processors for Socket AM5
  • Supported Memory: 4 x DIMM slots, Max. 128GB, DDR5 6400+(OC)
  • Graphics Output: 2 x DisplayPort, 1 x HDMI port
  • Features: 1 x Realtek 2.5Gb Ethernet
Based on 0 reviews. - Write a review
19,700.00৳
  • Stock: In Stock
  • Model: TUF GAMING A620M-PLUS
ASUS ASUS
Add to Cart
Buy Now
Add to Wish List Compare this Product
Tags: mother board
