| Basic Information | |
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium® Gold and Celeron |
| Type | DDR5 |
| Others | Special Features ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable Gen 2 headers |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
| Audio | 5 x Audio jacks |
| Processor | |
| Processor | Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | |
| Chipset Model | Intel B760 Chipset |
| Memory | |
| Maximum Memory | 192GB |
| Slots | 4 x DIMM |
| Supported Memory | 7800+ OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) ASUS Enhanced Memory Profile II (AEMP II) |
| Graphics | |
| Graphics Type | 1 x DisplayPort 1 x HDMI port Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. VGA resolution support depends on processors' or graphic cards' resolution. Connector & Ports HDMI 1 x HDMI port Display Port (s) 1 x DisplayPort |
| Others | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - DIGI+ VRM - PC CleanerTUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Connector | |
| M.2 Socket | Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Processors (14th& 13th& 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) |
| Network & Connectivity | |
| RAID | Intel Rapid Storage Technology supportsSATA RAID 0/1/5/10. |
| Ports & Slots | |
| Internal I/O Ports | Back Panel I/O Ports 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 5 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Front Panel Audio header (F-AUDIO) 1 x20-3 pin System Panel header with chassis intrusion function 1 x Thunderbolt™ (USB4®) header |
| Supported Storage | Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel®Core™Processors (14th& 13th& 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode) Intel®B760 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports |
| USB (s) | Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 8 ports) 1 x USB 10Gbps connector (supports USB Type-C®)* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 5 additional USB 2.0 ports LAN Port (s) 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Warranty Information | |
| Warranty | Manufacturing Warranty 3 years warranty |

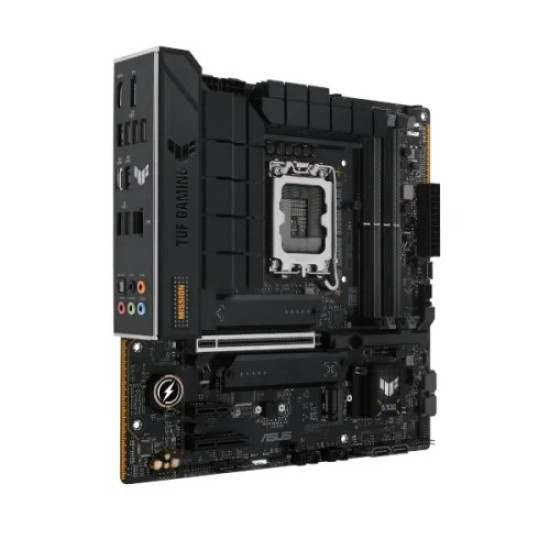

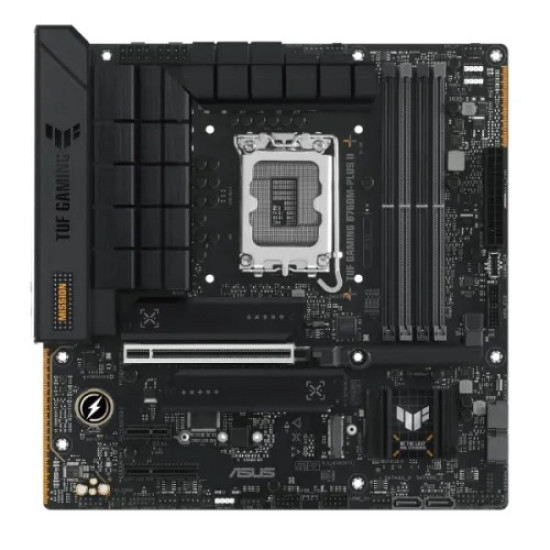

The ASUS TUF GAMING B760M-PLUS II LGA1700 Micro-ATX Motherboard is built for durability and high performance, making it ideal for gamers and PC builders. Powered by Intel B760 chipset and supporting 12th, 13th, and 14th Gen Intel processors, it delivers reliable power, enhanced cooling, and stable connectivity. With military-grade components, PCIe support, and advanced cooling solutions, this motherboard ensures long-lasting performance for gaming and multitasking.
