| Basic Information | |
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron |
| Others | Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Aluminum heatsink design |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Graphics Card | Support DisplayPort 1.4 with max. resolution of 4K@60Hz. Support HDMI® 2.1 with max. resolution of 4K@60Hz. |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers |
| External Features | |
| PCI | Intel 14th & 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot M.2 Socket 1 x M.2 slots |
| Processor | |
| Processor | Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | |
| Chipset Model | Intel H610 Chipset |
| Memory | |
| Maximum Memory | Max. 64GB |
| Slots | 2x DIMM |
| Supported Memory | 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
| Connectivity | |
| HDMI | 1 x HDMI port D-Sub (s) 1 x D-Sub |
| Ports & Slots | |
| Supported Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports Audio 3x Audio jacks Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Mono-out header(with Amp IC) 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| USB (s) | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports LAN Port (s) 1 x Realtek 1Gb Ethernet port Wireless Communication module M.2 slot only (Key E, CNVi & PCIe) *Wi-Fi module is sold separately. |
| Warranty Information | |
| Warranty | 3 years warranty |

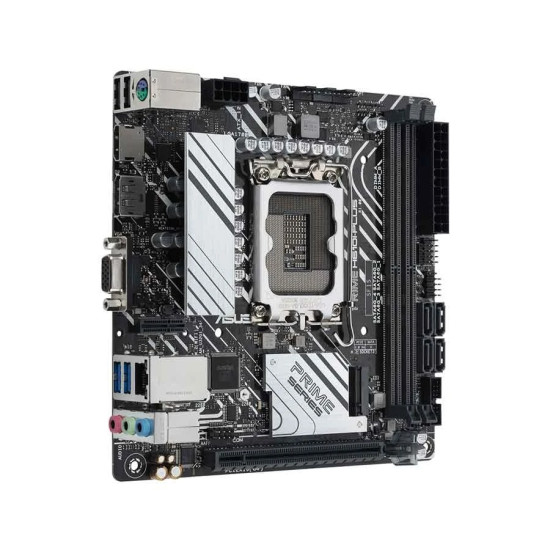

The ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard is a compact and efficient solution for small form factor PC builds. Powered by the Intel H610 chipset, it supports 12th and 13th Gen Intel Core processors, delivering reliable performance for everyday computing and light productivity. With DDR4 memory support, essential connectivity options, and ASUS Prime series durability, this Mini ITX board is perfect for space-saving builds without sacrificing stability and functionality.
