| Basic Information | |
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron |
| Type | DDR4 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | microATX: 22.6cm x 20.3cm |
| Processor | Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Graphics Card | 1 x D-Sub 1 x HDMI 1.4 / 2.0 |
| Audio | ALC887/ 897 Realtek ALC897/ 887 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Dedicated audio PCB layers |
| External Features | |
| Expansion Slots | PCI Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16 Intel H510 Chipset 1 x PCIe 3.0 x1 slot M.2 Socket Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports |
| Chipset | |
| Chipset Model | Intel H510 |
| Memory | |
| Maximum Memory | Max. 64GB |
| Slots | 2 x DIMM |
| Supported Memory | DDR4 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memork Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
| Connectivity | |
| HDMI | 1 x HDMI 1.4 |
| Ports & Slots | |
| D-Sub (s) | 1 x D-Sub |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
| LAN Port (s) | 1 x Intel I219-V 1Gb Ethernet ASUS LANGuard |
| Supported Storage | Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H510 Chipset M.2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| TPM (Trusted Platform Module) | 1 x SPI TPM header (14-1pin) |
| USB (s) | Rear USB: Total 6 ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB: Total 4 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
| Warranty Information | |
| Warranty | 3 years |

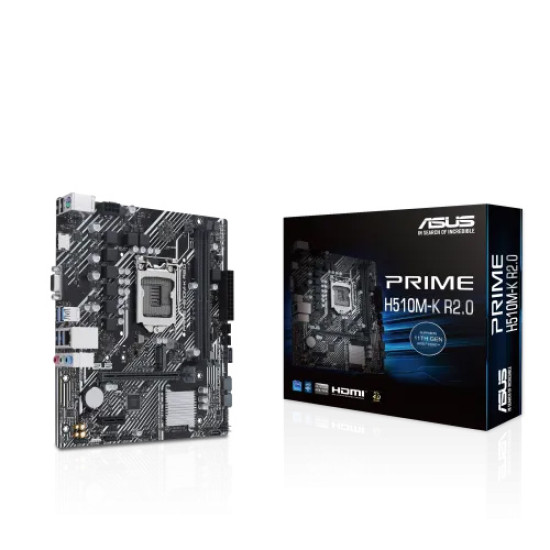

The Asus Prime H510M-K Micro-ATX Motherboard is built to deliver dependable performance and essential features for Intel 10th and 11th Generation Core processors. Powered by the Intel H510 chipset, it provides a solid foundation for home, office, and entry-level productivity systems.
Designed with ASUS Prime reliability, the H510M-K offers stable power delivery, efficient cooling, and comprehensive connectivity options. Its Micro-ATX form factor allows for compact builds while maintaining flexibility for future upgrades. Ideal for users seeking performance, durability, and value in a modern Intel platform.
