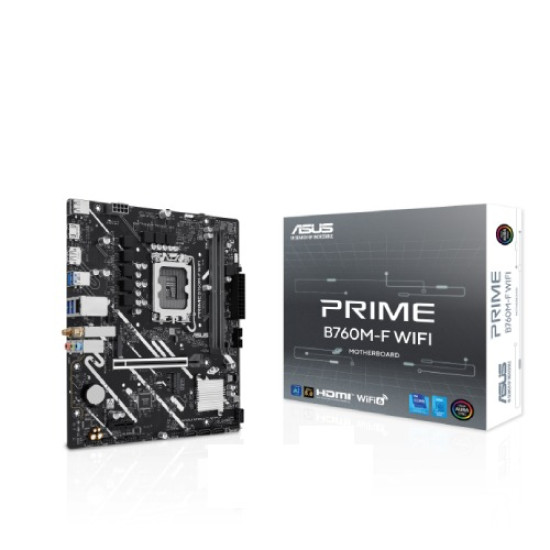

Asus PRIME B760M-F WIFI mATX Motherboard

Asus PRIME B760M-F WIFI mATX Motherboard
New
Basic Information
Supported CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron
Type DDR5
Others Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - Aluminum heatsink design Aura Sync - Addressable Gen 2 headers
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor micro-ATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Graphics Card ** Supports 4K@30Hz as specified in HDMI 1.4.
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
External Features
PCI Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x1 slot
Processor
Processor Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Chipset Model Intel B760 Chipset
Memory
Maximum Memory Max. 96GB
Supported Memory 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module
Camera & Audio
Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Others
Bundled Software ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Connectivity
HDMI 1x HDMI port Display Port (s) 1x DisplayPort
Connector
M.2 Socket Total supports 2 x M.2 slots
Ports & Slots
LAN Port (s) 1 x Realtek 1Gb Ethernet port Wireless Communication module Wi-Fi 6
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
USB (s) Rear USB (Total 6 ports) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports
Warranty Information
Warranty 3 years warranty

The ASUS PRIME B760M-F WIFI mATX Motherboard is a powerful and versatile choice for modern PC builds. Featuring the Intel B760 chipset, it supports 12th and 13th Gen Intel Core processors, delivering smooth performance for gaming, productivity, and multitasking. With built-in WiFi connectivity, DDR5 memory support, and ASUS Prime reliability, this motherboard ensures fast networking, stable operation, and future-ready performance. Its micro-ATX form factor makes it ideal for compact yet high-performance systems.


Write a review

Please login or register to review


  • Model: PRIME B760M-F WIFI
  • Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
  • Supported Memory: 2 x DIMM, Max. 96GB, DDR5
  • Graphics Output: 1 x HDMI, 1 x DP, 3 x Audio
  • Features: 1 x Realtek 1Gb Ethernet, WIFI 6
Asus PRIME B760M-F WIFI mATX Motherboard
..

Key Feature


  • Model: PRIME B760M-F WIFI
  • Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
  • Supported Memory: 2 x DIMM, Max. 96GB, DDR5
  • Graphics Output: 1 x HDMI, 1 x DP, 3 x Audio
  • Features: 1 x Realtek 1Gb Ethernet, WIFI 6
Based on 0 reviews. - Write a review
17,600.00৳
  • Stock: In Stock
  • Model: PRIME B760M-F WIFI
Add to Cart
Buy Now
Add to Wish List Compare this Product
Tags: mother board
