| Basic Information | |
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron |
| Type | DDR4 |
| Others | Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS EZ DIY - ProCool Non-stop Action - Lightning Boot Non-stop Challenger - ASUS iCafe labs certified Non-stop Durability - Luminous anti-moisture coating - USBGuard |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | mATX Form Factor 9.6 inch x 8.3 inch(24.4cm x 21.1cm) |
| Processor | Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Graphics Card | Supports 4K@60Hz as specified in HDMI 2.1. |
| Audio | 3x Audio jacks |
| External Features | |
| PCI | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots |
| Chipset | |
| Chipset Model | Intel B760 Chipset |
| Memory | |
| Maximum Memory | Max. 64GB |
| Slots | 2x DIMM |
| Supported Memory | 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
| Camera & Audio | |
| Audio Features | - Premium audio capacitors - Audio Shielding - Dedicated audio PCB layers |
| Connectivity | |
| HDMI | 1 x HDMI port VGA (s) 1 x VGA port |
| Connector | |
| M.2 Socket | 2 x M.2 slots |
| Ports & Slots | |
| Internal I/O Ports | Internal I/O Connectors Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 10-1 pin System Panel header |
| USB (s) | Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports LAN Port (s) 1 x Realtek 2.5Gb Ethernet port Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Warranty Information | |
| Warranty | 3 years warranty |

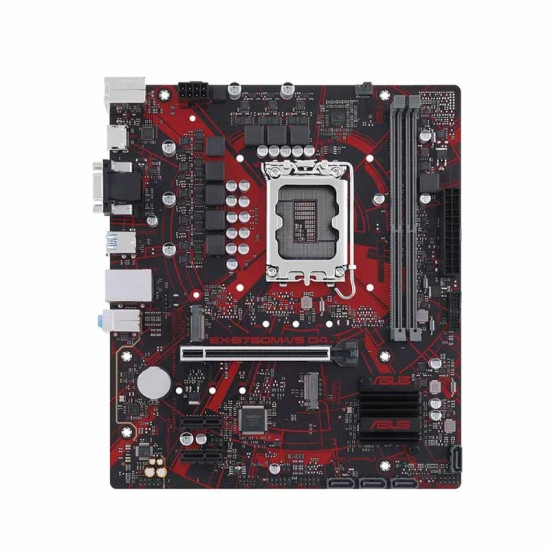

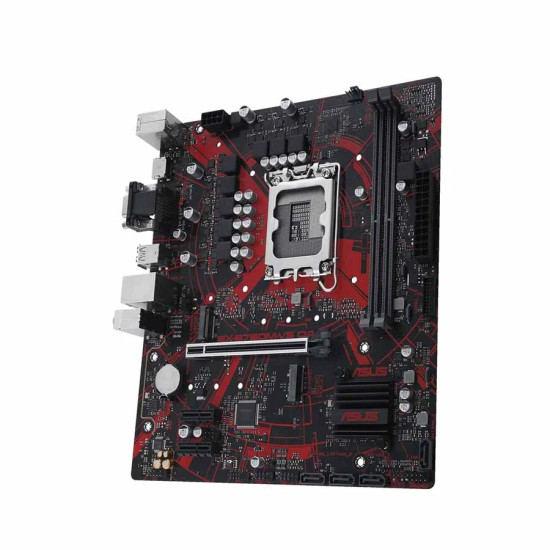

The ASUS EX-B760M-V5 D4 mATX Motherboard is a reliable and efficient choice for building a powerful Intel-based system. Designed with the Intel B760 chipset, it supports 12th and 13th Gen Intel Core processors, delivering smooth performance for gaming, productivity, and everyday computing. With DDR4 memory support, multiple connectivity options, and ASUS’s proven durability, this motherboard ensures stable performance and long-term reliability. Its micro-ATX form factor makes it perfect for compact builds without compromising on essential features.
