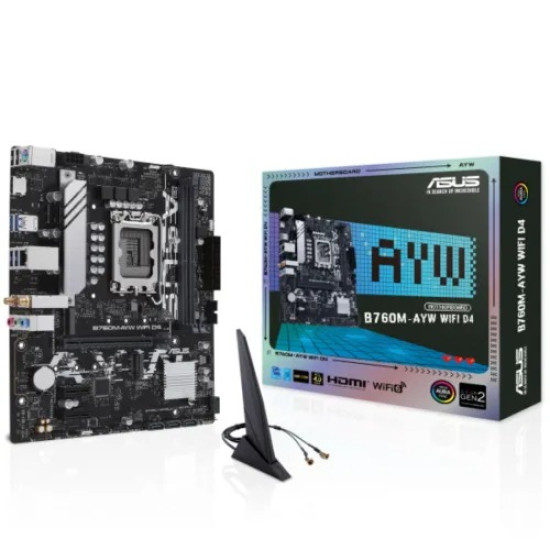

ASUS B760M-AYW WIFI D4 mATX Motherboard

ASUS B760M-AYW WIFI D4 mATX Motherboard
New
Basic Information
Supported CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium® Gold and
Type DDR4
Others Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - VRM heatsink design Aura Sync - Aura RGB header - Addressable Gen 2 headers
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Audio 3 x audio jacks
Processor
Processor Celeron Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Chipset Model Intel B760 Chipset
Memory
Slots 2 x DIMM
Supported Memory 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/ 4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/ 3400(OC)/3333(OC)/3200/3000/2933/2800/2666/ 2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
Graphics
Graphics Type Graphics 1 x HDMI port Graphics specifications may vary between CPU types Supports 4K@60Hz as specified in HDMI 2.1
Others
Bundled Software ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyASUS Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Connector
M.2 Socket 2 x M.2 slots Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Ports & Slots
Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet Wireless Communication module Wi-Fi 6 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.2
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
USB (s) Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A） Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports
HDMI Port 1 x HDMI
Warranty Information
Warranty 3 years

The ASUS B760M-AYW WIFI D4 mATX Motherboard delivers dependable performance and modern connectivity for Intel-based PC builds. Equipped with the Intel B760 chipset, it supports 12th and 13th Gen Intel Core processors and DDR4 memory, making it a cost-effective solution for gaming, office, and everyday use. Built-in WiFi ensures fast and stable wireless networking, while ASUS engineering provides durability and consistent system performance. Its micro-ATX design is perfect for compact and efficient setups.


Write a review

Please login or register to review

Model: B760M-AYW WIFI D4

  • Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
  • Supported RAM: 2 x DIMM, Max. 64GB, DDR4
  • Storage: 2 x M.2 slots, 4 x SATA 6Gb/s ports
  • Features: Realtek 2.5Gb Ethernet, Wi-Fi 6, PCIe 4.0 x16 slot
ASUS B760M-AYW WIFI D4 mATX Motherboard
..

Key Features

Model: B760M-AYW WIFI D4

  • Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
  • Supported RAM: 2 x DIMM, Max. 64GB, DDR4
  • Storage: 2 x M.2 slots, 4 x SATA 6Gb/s ports
  • Features: Realtek 2.5Gb Ethernet, Wi-Fi 6, PCIe 4.0 x16 slot
Based on 0 reviews. - Write a review
19,700.00৳
  • Stock: In Stock
  • Model: B760M-AYW WIFI D4
ASUS ASUS
Add to Cart
Buy Now
Add to Wish List Compare this Product
