| Input | |
| Current | 4-8A |
| Frequency Range | 47-63Hz |
| Key Features | |
| Fan Size | 120mm hydraulic bearing fan |
| Efficiency (Approx.) | Meet 80 PLUS Bronze efficiency |
| Output | |
| AC Input | 100-240V / 5-10A / 47-63Hz |
| DC Output | +3.3V / +5V / +12V / -12V / +5Vsb |
| Modular Type | Non Modular |
| Total Power | 650W |
| Connector | |
| CPU | 1 (4+4 Pin) |
| Main Power | 1 (20+4 Pin) |
| Molex | 3 (4 Pin) |
| PCI-E | 2 (6+2 Pin) |
| SATA | 5 (5 Pin) |
| Power | |
| Others | Type: ATX12V v2.4 Power Factor Correction: APFC with PF value of 0.99 Protection: OVP / UVP / OPP / OCP / SCP |
| Warranty Information | |
| Warranty | 5 Years |

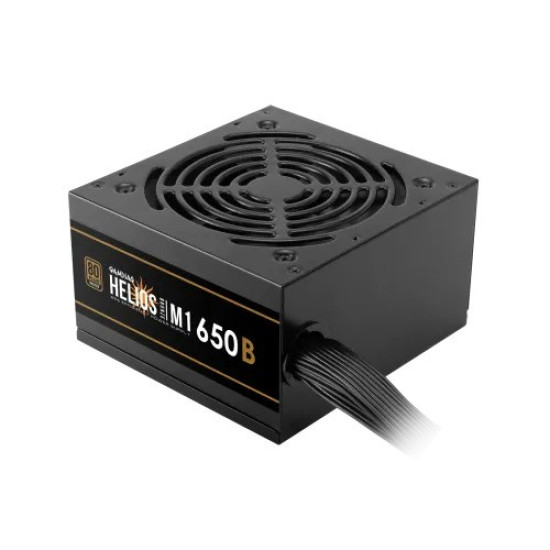

The Gamdias HELIOS M1-650B is a high-performance 650W power supply unit (PSU) designed to meet the needs of gaming PCs and high-performance systems. Featuring 80 Plus Bronze certification, it ensures superior energy efficiency, reducing both power consumption and heat output. With a robust design, it provides stable and reliable power to all your components, keeping your system running smoothly. The Gamdias HELIOS M1-650B is equipped with multiple protection features, including Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Current Protection (OCP), and Short Circuit Protection (SCP), offering peace of mind and preventing damage to your valuable hardware. Whether you're building a new rig or upgrading your existing setup, this PSU delivers dependable power at an affordable price.
- Model: HELIOS M1-650B
- Total Output Power: 650 Watt
- Power Supply Type: ATX12V v2.4
- Certification: 80 PLUS Bronze Certified
- Cooling System: 120mm Hydraulic Bearing Fan
Key Features
- Model: HELIOS M1-650B
- Total Output Power: 650 Watt
- Power Supply Type: ATX12V v2.4
- Certification: 80 PLUS Bronze Certified
- Cooling System: 120mm Hydraulic Bearing Fan
- Stock: Out Of Stock
- Model: M1-650B
