| Basic Information | |
| Supported CPU | Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package L3 cache varies with CPU |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 22.6cm x 17.4cm |
| Processor | |
| Supported Technologies | Intel® Core™ i9/i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules Intel Core i5/ i3/ Pentium /Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules |
| Chipset | |
| Chipset Model | Intel H410 Express Chipset |
| Memory | |
| Maximum Memory | 64 GB |
| Type | 2 x DDR4 DIMM |
| Storage | |
| Storage Type | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) |
| Storage Capacity | 512MB |
| Type | Dual-channel architecture |
| Graphics | |
| Graphics Type | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz |
| Others | |
| Bundled Software | Support for Windows 10 64-bit |
| Special Features | Support for APP Center @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
| Connector | |
| PCI-E | 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots |
| Ports & Slots | |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper |
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/100 Mbit) |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) 4 x SATA 6Gb/s connectors |
| TPM (Trusted Platform Module) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| USB (s) | 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| HDMI Port | 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz |
| Warranty Information | |
| Warranty Details | 03 Years |

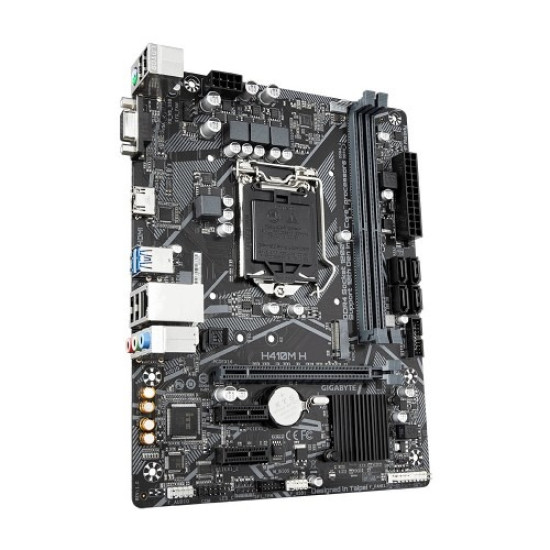

Gigabyte H410M-H Micro ATX Motherboard for 10th Gen Intel Processors
Upgrade your system with the reliable and feature-packed Gigabyte H410M-H Motherboard, designed specifically for Intel’s 10th Gen processors. With its Micro ATX form factor, this motherboard offers a compact yet powerful solution for both workstations and gaming PCs. Equipped with support for LGA 1200 sockets, it delivers fast and stable performance for your next project or gaming setup.
