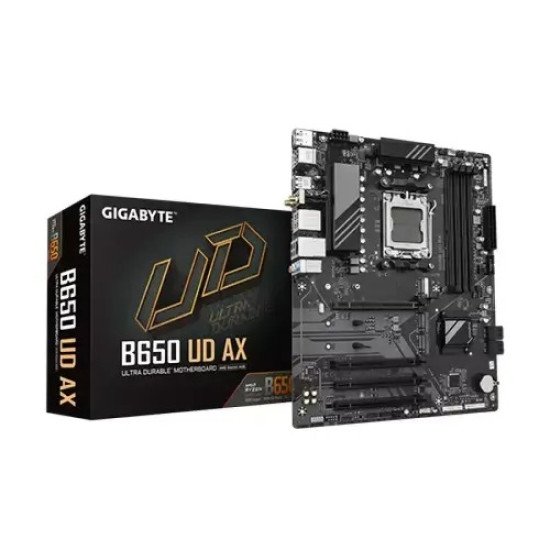

GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard

GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard
Out Of Stock
Basic Information
Supported CPU AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Type DDR5
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio 3 x audio jacks
External Features
Expansion Slots PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1 * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen 8000 Series-Phoenix 2 processor is used. 1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1 M.2 Socket 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: - AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 5.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: - AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
Chipset
Chipset Model AMD B650 Chipset
Memory
Maximum Memory supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Slots 4 x DIMM
Others
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software
Connectivity
HDMI 1 x HDMI
Network & Connectivity
RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Ports & Slots
Display Port (s) 1 x DisplayPort
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 1 x system fan/water cooling pump header 1 x addressable RGB Gen2 LED strip header 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x Clear CMOS jumper
LAN Port (s) Realtek RTL8111H GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) Wireless Communication module Realtek RTL8851 WIFI 6 module - WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - Support for 11ac wireless standard BT 5.0
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: - AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 5.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: - AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
USB (s) CPU: - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Warranty Information
Warranty 3 Years

The GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard is designed for users seeking next-generation performance, stability, and advanced connectivity. Built for AMD Ryzen AM5 processors, it supports high-speed DDR5 memory and features integrated Wi-Fi (AX) for fast, reliable wireless networking. With its ATX form factor, robust power delivery, and durable components, this motherboard is ideal for gaming, content creation, and high-performance PC builds.


Write a review

Please login or register to review

Model: B650 UD AX

  • Supported CPU: Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
  • Supported Memory: 4 x DDR5 8000(OC) Max. 256GB
  • Graphics Output: 1 x DisplayPort, 1 x HDMI port
  • Feature: BT 5.0, WIFI 6, Realtek RTL8111H GbE LAN
GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard
..

Key Features

Model: B650 UD AX

  • Supported CPU: Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
  • Supported Memory: 4 x DDR5 8000(OC) Max. 256GB
  • Graphics Output: 1 x DisplayPort, 1 x HDMI port
  • Feature: BT 5.0, WIFI 6, Realtek RTL8111H GbE LAN
Based on 0 reviews. - Write a review
21,000.00৳
  • Stock: Out Of Stock
