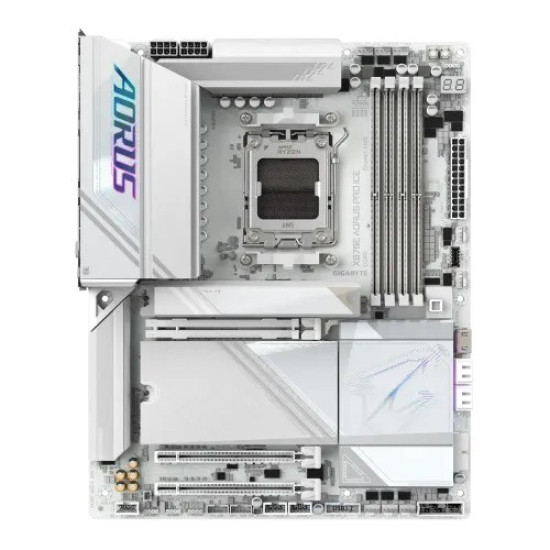

Name: GIGABYTE X870E AORUS PRO ICE AM5 ATX Motherboard (DDR5 Support)
Brand: Gigabyte
Price: 54000.00 BDT
Availability: InStock

GIGABYTE X870E AORUS PRO ICE AM5 ATX Motherboard (DDR5 Support)

Basic Information
Supported CPU	AMD Socket AM5, support for: AMD Ryzen 9000, 8000, 7000 Series Processors
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Audio	Realtek ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Chipset
Chipset Model	AMD X870
Memory
Maximum Memory	up to 256 GB (64 GB single DIMM capacity) of system memory
Type	DDR5
Bus Speed	Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Total RAM Slot	4 DIMMs
Storage
Storage Type	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors will become unavailable when using the AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors. 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
Graphics
Graphics Model	Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. * Support for native HDMI 2.1 TMDS compatible ports. - 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version (Graphics specifications may vary depending on CPU support.)
Others
Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Connectivity
HDMI	1 x HDMI port
Connector
PCI-E	1x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. When the M2B_CPU orM2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Network & Connectivity
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Wireless Communication module	Qualcomm Wi-Fi 7 QCNCM865 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
LAN	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Physical Specification
I/O Port	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x HDMI port (Note) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x Q-Flash Plus button 2 x USB 2.0/1.1 ports 1 x HDMI port (Note) 4 x USB 3.2 Gen 1 ports 2 x USB4® USB Type-C® port (DisplayPort (Note)) 3 x USB 3.2 Gen 2 Type-A ports (red) 1 x RJ-45 port 2 x antenna connectors (2T2R) 1 x optical S/PDIF Out connector 2 x audio jacks TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0/GC-TPM2.0 SPI V2 module only)
Ports & Slots
USB (s)	CPU+ASMedia USB4 controller: - 2 x USB4 USB Type-C ports on the back panel CPU: - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Warranty Information
Warranty Details	3 Years

The GIGABYTE X870E AORUS PRO ICE DDR5 AM5 ATX Motherboard is engineered for maximum performance, making it an excellent choice for high-end builds and extreme users. With support for AMD Ryzen™ 9000, 8000, and 7000 Series processors via the AMD Socket AM5, it leverages DDR5 memory technology for blazing-fast performance. The motherboard features four DIMM slots for dual-channel DDR5 memory, offering overclocking capabilities up to 8600MT/s with AMD EXPO™ Memory Module Support.

The 16+2+2 phases VRM solution provides rock-solid power delivery, ideal for both demanding applications and overclocking. To ensure your system remains cool during intense use, the board comes equipped with DDR Wind Blade for active cooling of the memory modules, along with VRM Thermal Armor Advanced and I/O ZONE for efficient heat dissipation.

For ultra-fast storage, it supports four M.2 slots, including three PCIe 5.0 x4 slots, offering high-speed data transfer. The connectivity options are top-notch with 5GbE LAN, Wi-Fi 7, dual USB4 Type-C with DP-Alt, and HDMI, ensuring high-speed networking and versatility.

Ease of installation is enhanced by M.2 EZ-Match magnetic alignment and EZ-Latch Plus for PCIe and M.2 slots. The user-friendly interface features multi-theme support, providing an intuitive experience for system setup and management.

On the audio front, the motherboard boasts Realtek ALC1220 HD Audio and WIMA audiophile-grade capacitors to deliver premium sound quality for an immersive listening experience.

In summary, the GIGABYTE X870E AORUS PRO ICE DDR5 AM5 ATX Motherboard is a powerhouse for users looking to unlock the full potential of their systems with cutting-edge memory, reliable power delivery, and superior cooling solutions, all while ensuring high-speed connectivity and premium audio performance

Model: X870E AORUS PRO ICE
Supported CPU: Ryzen 9000 / 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, Max 256GB
Graphics Output: 2 x USB4 (Type-C) , 1 x HDMI, 1x HDMI (front)
Features: Realtek 2.5GbE LAN & Qualcomm Wi-Fi 7 QCNCM865

GIGABYTE X870E AORUS PRO ICE AM5 ATX Motherboard (DDR5 Support)

Key Features

Model: X870E AORUS PRO ICE
Supported CPU: Ryzen 9000 / 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, Max 256GB
Graphics Output: 2 x USB4 (Type-C) , 1 x HDMI, 1x HDMI (front)
Features: Realtek 2.5GbE LAN & Qualcomm Wi-Fi 7 QCNCM865
