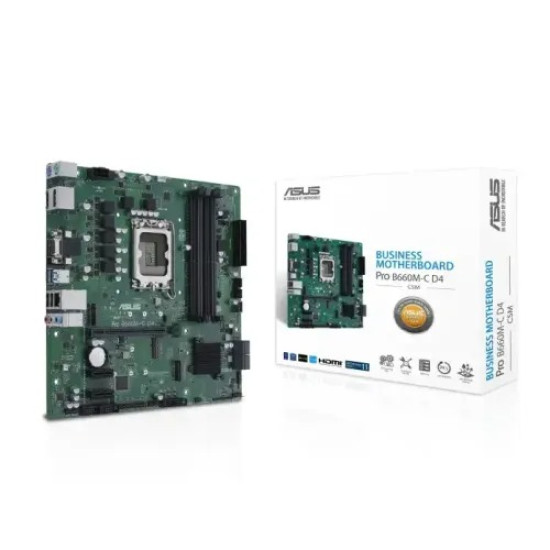

ASUS Pro B660M-C D4-CSM mATX Motherboard

ASUS Pro B660M-C D4-CSM mATX Motherboard
New
Basic Information
Supported CPU Intel Socket LGA1700 for 14th, 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Type DDR4
Others Special Features ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - Q-LED Core - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit - Anti-Moisture - 24/7 Reliability - Overcurrent Protection TPM IC onboard Bundled Software ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE)
BIOS 128Mb Flash ROM
Audio 3 x Audio jacks
External Features
PCI Intel 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B660 Chipset 2 x PCIe 3.0 x1 slots
Chipset
Chipset Model Intel B660 Chipset
Memory
Maximum Memory 128GB
Slots 4 x DIMM slots
Supported Memory 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Optimem
Connectivity
HDMI 1 x HDMI Display Port (s) 2 x DisplayPort D-Sub (s) 1 x D-Sub
Ports & Slots
Internal I/O Ports Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header(with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 pin System Panel header
LAN Port (s) 1 x Intel 1Gb Ethernet ASUS LANGuard Wireless Communication module M.2 slot only (Key E, CNVi & PCIe) *Wi-Fi module is sold separately. Supported Storage Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode Intel B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
USB (s) Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Warranty Information
Warranty 3 Years

The ASUS Pro B660M-C D4-CSM mATX Motherboard is built for business and professional environments, offering stability, security, and long-term reliability. Powered by the Intel B660 chipset, it supports 12th Gen Intel Core processors and DDR4 memory for efficient multitasking and smooth performance. With ASUS Corporate Stable Model (CSM) support, enhanced system protection, and robust connectivity options, this motherboard is ideal for office PCs, workstations, and enterprise deployments. Its micro-ATX design ensures flexibility for compact and scalable builds.



Write a review

Please login or register to review

Model: Pro B660M-C D4-CSM

  • Supported CPU: 14th, 13th & 12th Gen Core, Pentium Gold & Celeron (LGA1700)
  • Supported RAM: 4x DDR4, Max 128GB
  • Graphics Output: 2 x DisplayPort, 1 x D-Sub, 1 x HDMI
  • Features: 1 x Intel 1Gb Ethernet
ASUS Pro B660M-C D4-CSM mATX Motherboard
..

Key Features

Model: Pro B660M-C D4-CSM

  • Supported CPU: 14th, 13th & 12th Gen Core, Pentium Gold & Celeron (LGA1700)
  • Supported RAM: 4x DDR4, Max 128GB
  • Graphics Output: 2 x DisplayPort, 1 x D-Sub, 1 x HDMI
  • Features: 1 x Intel 1Gb Ethernet
Based on 0 reviews. - Write a review
16,200.00৳
  • Stock: In Stock
  • Model: Pro B660M-C D4-CSM
