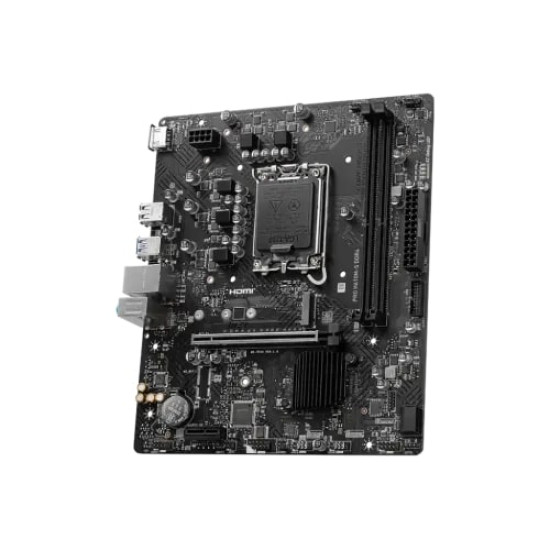

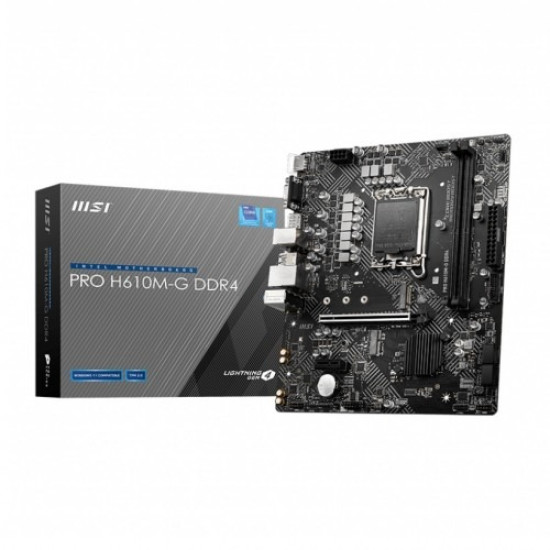

MSI H610M-G DDR4 Micro-ATX Motherboard – PRO Series

MSI H610M-G DDR4 Micro-ATX Motherboard – PRO Series
MSI H610M-G DDR4 Micro-ATX Motherboard – PRO Series
MSI H610M-G DDR4 Micro-ATX Motherboard – PRO Series
MSI H610M-G DDR4 Micro-ATX Motherboard – PRO Series
MSI H610M-G DDR4 Micro-ATX Motherboard – PRO Series
MSI H610M-G DDR4 Micro-ATX Motherboard – PRO Series
Basic Information
Supported CPU Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 Processor socket LGA1700
Form Factor mATX Form Factor 9.29 x 7.95 in. (23.6 cm x 20.2 cm)
Audio Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio
Chipset
Chipset Model Intel H610 Chipset
Memory
Maximum Memory Support up to 64GB
Slots 2x DDR4 memory slots
Type DDR4
Bus Speed Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory
Graphics
Graphics Type 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Connector
PCI-E 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)

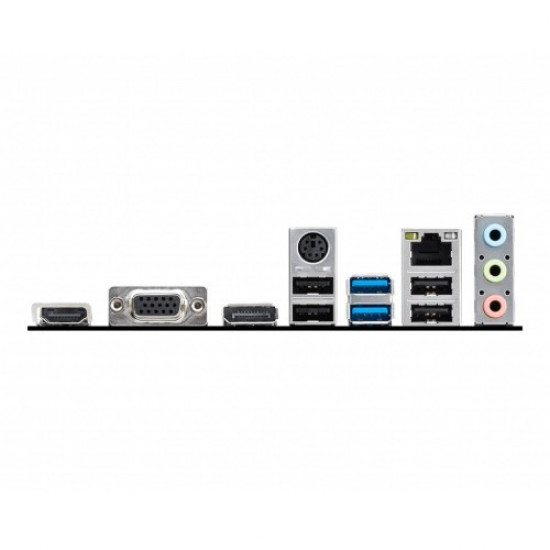

Ports & Slots
Display Port (s) 1x DisplayPort
Internal I/O Ports POWER CONNECTORS: 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector FAN CONNECTORS: 1x 4-pin CPU fan connector 1x 4-pin system fan connector SYSTEM CONNECTORS: 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector JUMPERS: 1x Clear CMOS jumper LED FEATURES: 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED
LAN Port (s) 1x Intel I219V 1Gbps LAN controller
Supported Storage 4x SATA 6Gb/s ports 1x M.2 slot (Key M, from chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors
TPM (Trusted Platform Module) 1x TPM module connector
USB (s) Intel H610 Chipset: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
VGA (s) 1x VGA port
HDMI Port 1x HDMI 2.1
Warranty Information
Warranty Details 3 years

MSI H610M-G DDR4 Micro-ATX Motherboard – PRO Series

The MSI H610M-G DDR4 is a reliable, compact motherboard designed to provide solid performance for your everyday computing needs. Built with durability and versatility in mind, this Micro-ATX motherboard is an excellent choice for users looking to create a cost-effective yet powerful system.

Key Features:

  • Intel 12th Gen Processor Support: The H610M-G motherboard supports Intel's latest 12th Gen Alder Lake processors, offering improved performance and energy efficiency for both work and play.

  • DDR4 Memory Support: Compatible with DDR4 memory modules, this board can handle up to 64GB of RAM, allowing for fast multitasking and smooth performance in a variety of applications.

  • PCIe 4.0: With PCIe 4.0 support, enjoy faster data transfer speeds, making it ideal for gaming and productivity tasks that require high-bandwidth devices like graphics cards and storage drives.

  • USB 3.2 Ports: Equipped with the latest USB 3.2 ports for ultra-fast data transfer speeds, allowing you to quickly connect external devices like USB drives, external storage, and more.

  • Enhanced Audio and Networking: The onboard Realtek audio and LAN ensure clear sound and fast, stable internet connections for gaming, streaming, and video conferencing.

  • Easy Installation and User-Friendly Design: The Micro-ATX form factor allows for easy installation in most cases, and MSI's intuitive design makes it a great choice for both beginners and experienced users.

Why Choose the MSI H610M-G DDR4?

  • Affordable Performance: Perfect for budget-conscious users who want to build a PC for daily tasks, light gaming, or office work without breaking the bank.
  • Compact Size: Its Micro-ATX form factor ensures it fits into smaller PC cases, making it ideal for space-saving builds.
  • Durable Components: MSI's commitment to quality means your motherboard is built to last and can handle long-term use.

Whether you are building a home office PC, a budget gaming rig, or a general-purpose workstation, the MSI H610M-G DDR4 Micro-ATX Motherboard – PRO Series offers great value and performance for the price.

Write a review

Please login or register to review
  • Model: PRO H610M-G DDR4
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supports DDR4 Memory, up to 3200(MAX) MHz
  • Lightning Fast Experience: PCIe 4.0
  • Core Boost, Memory Boost, Audio Boost
MSI H610M-G DDR4 Micro-ATX Motherboard – PRO Series
..

Key Features

  • Model: PRO H610M-G DDR4
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supports DDR4 Memory, up to 3200(MAX) MHz
  • Lightning Fast Experience: PCIe 4.0
  • Core Boost, Memory Boost, Audio Boost
10,700.00৳
  • Stock: In Stock
  • Model: PRO H610M-G DDR4
Tags: Motherboard
